H-100 Series Probe Station

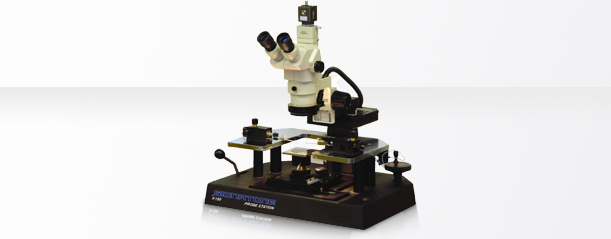

Signatone H-100 Series Probe Station

Signatone H-100 Series Probe Station



H-100 Series Probe Stations include a three inch square device / substrate chuck and are primarily designed for probing thick film devices such as ceramic substrates, printed circuit boards and hybrid circuits. The H-150 system, however, can be equipped with a four inch diameter wafer chuck for probing wafers up to four inches in diameter. H-100 Series Probe Stations are available in three versions: H-100, H-120 and H-150.



The modular design provides a wide number of options to suit a broad range of needs. All models include an aluminum base casting, a device stage with four inches of X-Y travel, a linear motion platen that can be raised and lowered using either a crank or a lever, and a microscope tower for mounting Stereozoom optics in a fixed position. A 4" x 4" microscope stage is optional. The platen will accept up to six magnetic based micropositioners and a probe card adapter for use with probe cards. Micropositioner electrical connections are made through six pin jacks that correspond to color coded banana plugs.

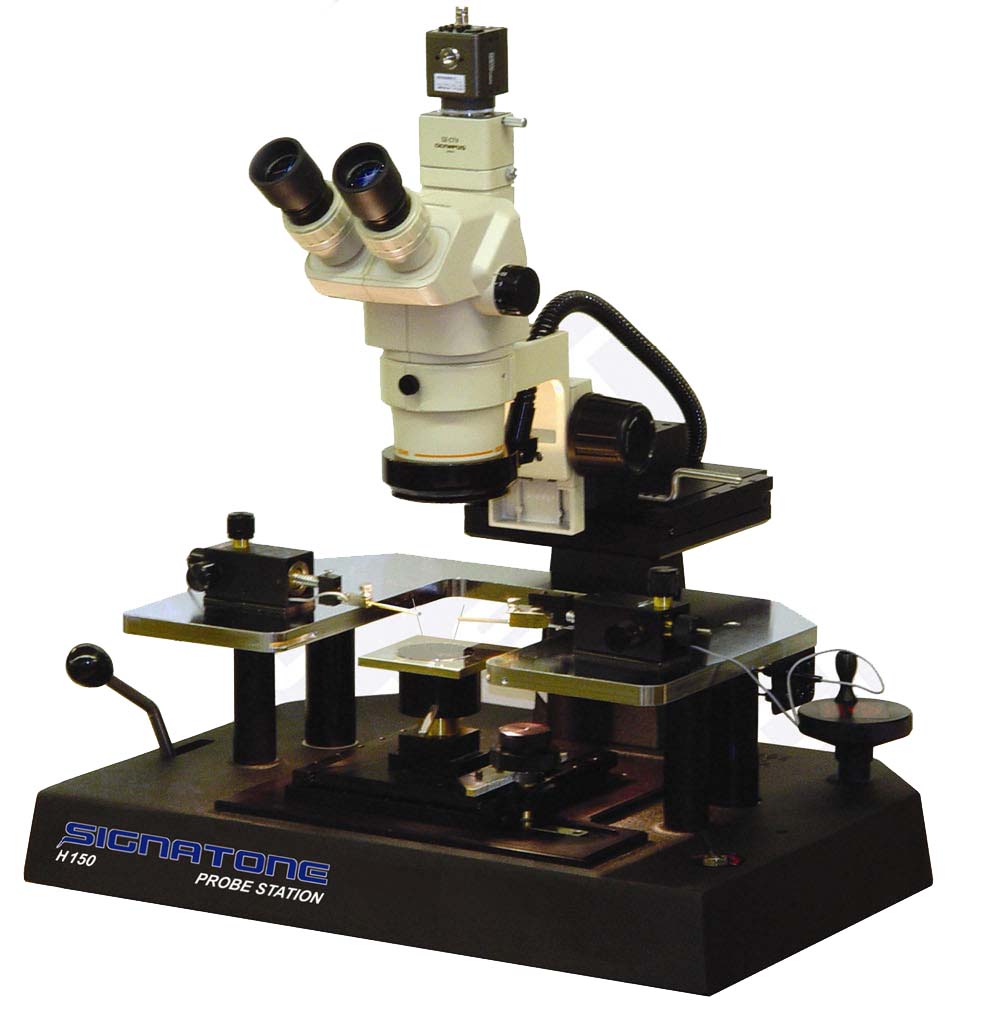

The Signatone H150W Hybrid probe station and accessories make a complete probing station for 4-inch applications.

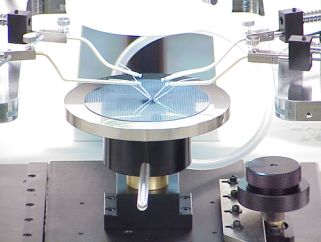

  • 4-inch, round, Nickel plated chuck with
  • 4-inch manual X-Y motion control
  • manual theta adjustment

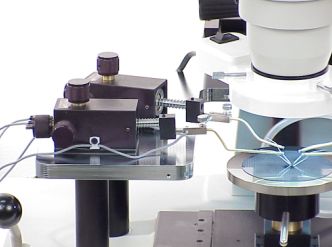

4 x S-725C#M micropositioners with X-Y-Z motion control


"Quick platen lift" raises the probes off of the device before moving the device in X or Y directions


4-inch, X-Y "push" microscope stage helps position the scope for the most favorable view of the DUT.


The SMZ143, Motic Stereozoom comes standard with a built in CCD port and 4:1 manual zoom



A typical configuration might include:
Item Qty Model # Description
1a
1
H150W

Manual, Hybrid Probe Station

  • Manual X-Y stage with a 4 inch, Nickel plated chuck
  • Manual theta adjustment
  • Coarse, quick platen lift of 3/8"
  • Fine platen lift of 1.25"
  • Platen holds up to 8 micropositioners
  • Vacuum toggle switch for device hold on chuck
  • 1 year limited warranty
1b
1
HK44 Manual microscope stage
     Manual, 4" X-Y motion control
2
1
SMZ143

Motic Stereozoom Microscope

  • 1x to 4x manual zoom
  • 10x eyepieces
  • Ring light with power supply
  • Trinocular head with CCD port (adapter required)
  • 80mm working distance
3a
2
S-725CLM

Micropositioner

  • X-Y-Z motion control
  • 80 TPI resolution
  • rigid head mount
  • magnetic base
  • Left hand configuration
3b
2
S-725CRM

Micropositioner

  • X-Y-Z motion control
  • 80 TPI resolution
  • rigid head mount
  • magnetic base
  • Right hand configuration
3c
4
S2-S-2

Probe Tip Holder

  • screw locking probe tip mount
  • Z shape bend in shank
  • 2.75" long
3d
5 Boxes
SE-T

Probe Tips

  • 5 micron tip diameter
  • 1.25" long
  • 5 tips per box



Optional Items:
Item Qty Model # Description
4
1
S-VAC Portable vacuum pump
Provides vacuum for device hold down on chuck
5
1
VCS-MP14 Video Monitoring System- CCD adapter- color CCD camera- 20" color monitor
