S-1160 Series Probe Stations

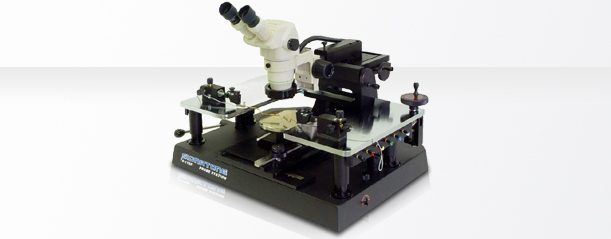

Signatone S-1160 Series Probe Stations

Signatone S-1160 Series Probe Stations



The S-1160 Probe Station is a rugged, economically priced probe station that can be fitted with either high powered optics for probing small geometries or lower powered optics for probing bonding pads and larger geometries.



The S-1160 Probe Station is available in a variety of configurations for applications including RF probing, low current (femtoamp range) probing, failure analysis, thermal probing and other uses. The S-1160 will accept both magnetic base and vacuum base micropositioners and is equipped with vacuum ports for up to twelve vacuum base micropositioners. The S-1160 Probe Station has a proven track record for reliability and functionality at an attractive price.





See the S-1160 Series setups shown below (Click on any of the images for a larger view):

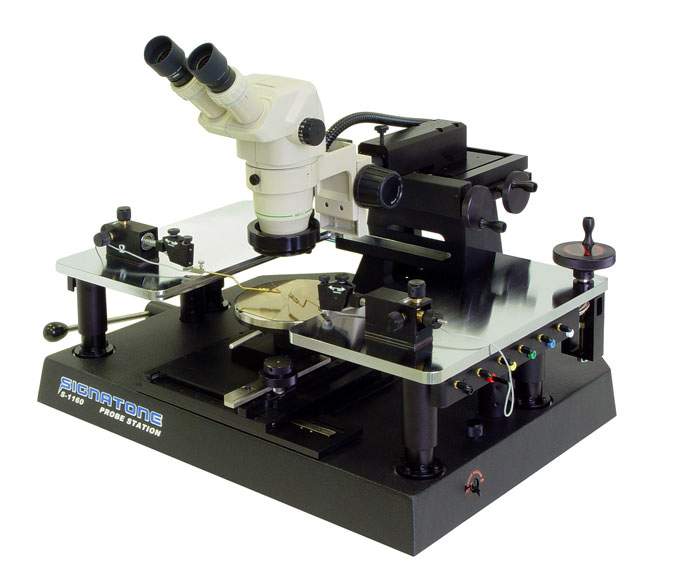

S-1160B Probe Station set up with low powered optics

S-1160B Probe Station set up with low powered optics

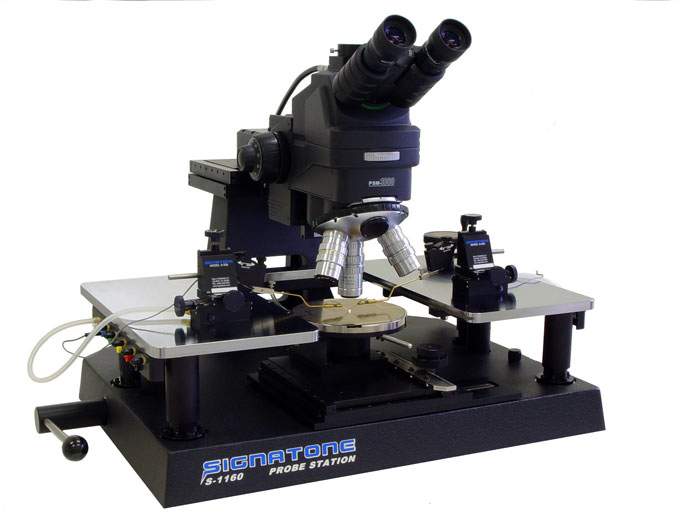

S-1160A Probe Station set up with high powered optics

S-1160A Probe Station set up with high powered optics

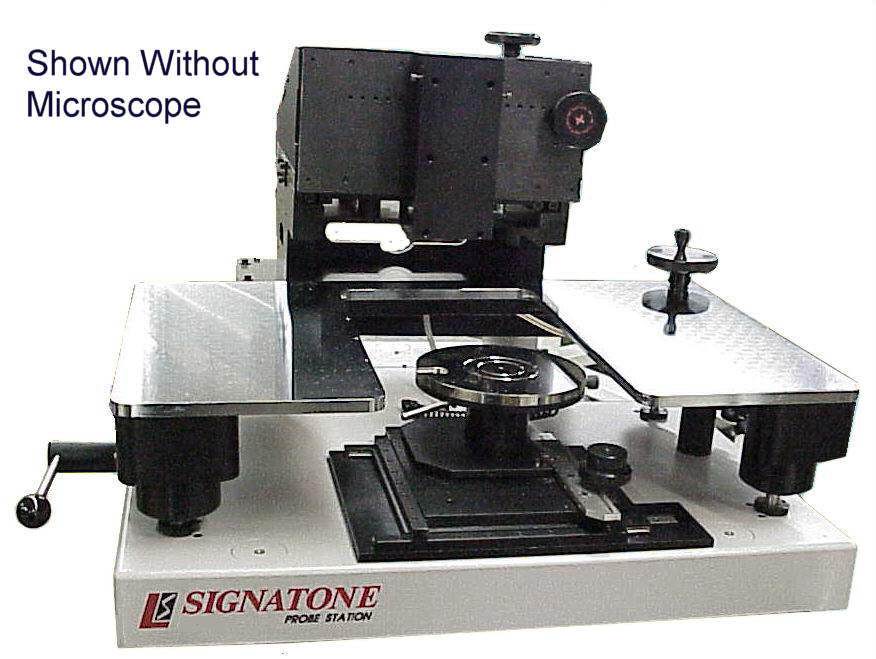

Set up for high powered optics with High Stability Microscope Stage (shown without microscope)

Set up for high powered optics with High Stability Microscope Stage (shown without microscope)
