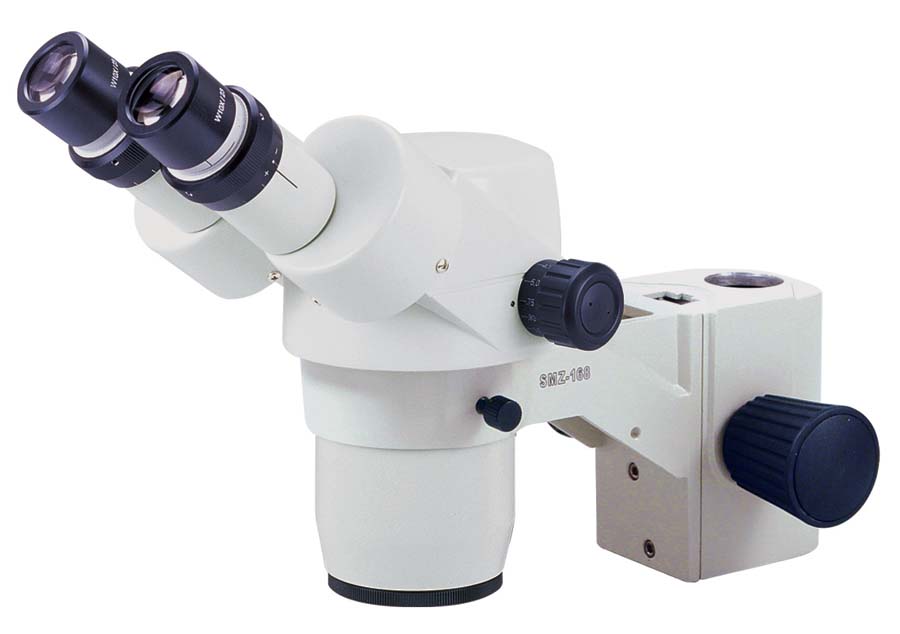

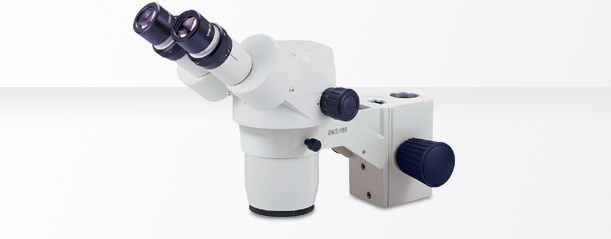

Motic SMZ-168 Microscope

The Motic SMZ line of stereozoom microscopes is designed for the harsh environments of production and testing and also offers the additional benefit of easy integration for use in digital applications.

SMZ-168 Standard Features:

Optical System

• High resolution stereo image
• Zoom magnification click stops
• Standard observation angle of 35°
  SMZ-168-BL (60) observation angle of 60°
• Adjustable interpupilliary distance: 52 mm - 75mm
  SMZ-168-BL (60) adjustable interpupilliary distance: 52.5mm ~ 75mm
• Zoom magnification range: 0.75X - 5X
• Zoom ratio: 1 : 6.7
• Working distance: 113mm
• Anti-fungus properties

Eyepieces

• Widefield high eye point 10X/23

Focusing Block

• Ball bearing focusing mechanisms
• 50mm focusing range
• 76mm inner head mount
• 12V/10W halogen incident light
